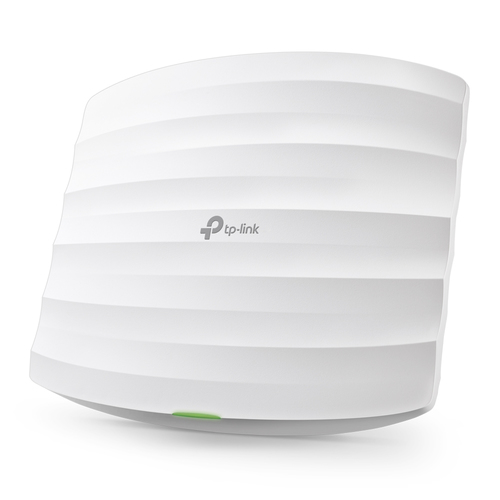

TP-Link EAP115 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Product Technical Specification
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | No |
| Maximum data transfer rate | 300 |
| Maximum data transfer rate (2.4 GHz) | 300 |
| Ethernet LAN data rates | 10,100,1000 |
| Frequency band | 2.4 - 2.4835 |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Automatic channel selection | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
| Security | |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID |
| Number of SSID supported | 8 |
| System status alarm | Yes |
| Access Control List (ACL) | Yes |
| Management features | |
| Web-based management | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45),Wi-Fi |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Output voltage | 9 |
| Output current | 0.6 |
| Power consumption (typical) | 2.8 |
| Design | |
| Placement | Ceiling,Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 4 |
| Weight & dimensions | |
| Width | 172.3 |
| Depth | 189.4 |
| Height | 29.5 |
| Packaging content | |
| Number of products included | 1 |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 90 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
300Mbps Wireless N Ceiling Mount Access Point.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
