TP-Link Omada 10/100 Mbps WDM Media Converter
Product Technical Specification
| Network | |
| Maximum data transfer rate | 100 |
| Networking standards | IEEE 802.3,IEEE 802.3i,IEEE 802.3u |
| Ethernet LAN data rates | 10,100 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full,Half |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 20000 |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Design | |
| Internal | No |
| LED indicators | Activity,Link,Power |
| Product colour | Black |
| Certification | FCC, CE |
| Power | |
| Output voltage | 5 |
| Output current | 0.6 |
| Weight & dimensions | |
| Width | 94.5 |
| Depth | 73 |
| Height | 27 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)

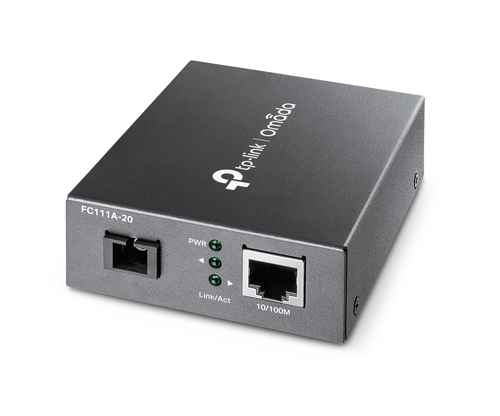

FC111A-20 (TL-FC111A-20) is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC111A-20 should send data at a wavelength of 1310nm and receive data at a wavelength of 1550nm. TP-Link another media converter FC111B-20 is one of the products that can cooperate with FC111A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
| Network | |
| Maximum data transfer rate | 100 |
| Networking standards | IEEE 802.3,IEEE 802.3i,IEEE 802.3u |
| Ethernet LAN data rates | 10,100 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Fiber ethernet cabling technology | 100BASE-FX |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full,Half |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Performance | |
| Maximum transfer distance | 20000 |
| Fiber mode structure | Single-mode |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Design | |
| Internal | No |
| LED indicators | Activity,Link,Power |
| Product colour | Black |
| Certification | FCC, CE |
| Power | |
| Output voltage | 5 |
| Output current | 0.6 |
| Weight & dimensions | |
| Width | 94.5 |
| Depth | 73 |
| Height | 27 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
