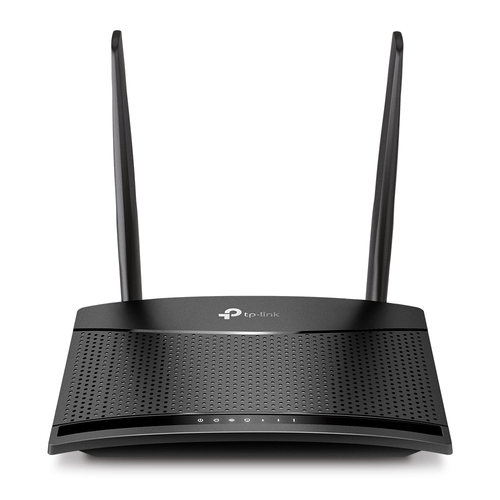

TP-Link TL-MR100 wireless router Fast Ethernet Single-band (2.4 GHz) 4G Black
Product Technical Specification
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 |
| Receiver sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Mobile network | |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 3G standards | HSPA,UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| UMTS bands supported | 850,900,2100 |
| 4G bands supported | 800,900,1800,1900,2100,2300,2500,2600 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Quality of Service (QoS) support | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | External |
| Antenna connector type | N-type |
| Antennas quantity | 2 |
| Features | |
| Firmware upgradeable | Yes |
| Certification | CE, RoHS |
| Power | |
| Power source type | DC |
| Output voltage | 9 |
| Output current | 0.85 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 154 |
| Depth | 114 |
| Height | 36 |
| Packaging data | |
| Package width | 293 |
| Package depth | 161 |
| Package height | 66 |
| Package weight | 450 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is inserting a micro SIM card and turning on the router. It has never been easier than enjoy a fast, stable Wi-Fi on 4G LTE network.
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network to download speed up to 150 Mbps. Share your 4G LTE network with multiple Wi-Fi devices and enjoy uninterrupted HD movies, rapid file downloads, and smooth video chats. Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide.
Robust Parental Controls
If you want to block harmful websites, set surfing time limits, check which sites your kids are using or just pause the internet, you can do it all.
Wi-Fi Where You Need It
Enjoy unconstrained convenience and versatility. MR100 has been tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of device to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Reliable Access for Up to 32 Devices Simultaneously
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 1 LAN ports stand ready to provide internet for wired devices like desktop computers.
