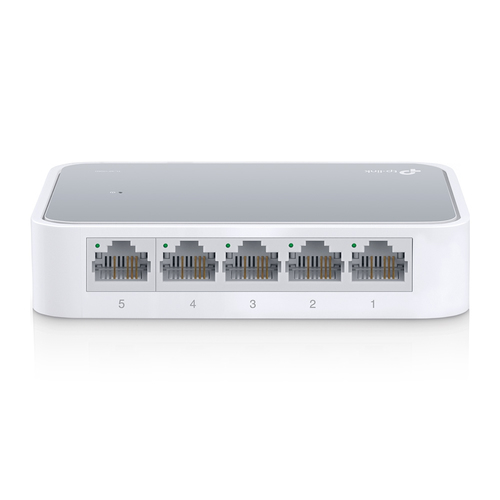

TP-Link TL-SF1005D Managed Fast Ethernet (10/100) White
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 1.6 |
| MAC address table | 1000 |
| Store-and-forward | Yes |
| Protocols | |
| Supported network protocols | CSMA/CD, TCP/IP |
| Design | |
| Rack mounting | No |
| Product colour | White |
| LED indicators | Yes |
| Certification | FCC, RoHs |
| Performance | |
| Fanless | Yes |
| Technical details | |
| Compliance certificates | CE,Federal Communications Commission (FCC),RoHS |
| Power | |
| Power source | DC |
| Power supply included | No |
| AC input voltage | 220 |
| AC input frequency | 50 |
| DC input voltage | 5 |
| Input current | 0.6 |
| Power consumption (typical) | 1.87 |
| Power consumption (max) | 1.87 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 6.38 |
| Weight & dimensions | |
| Width | 103.5 |
| Depth | 70 |
| Height | 22 |
| Packaging data | |
| Cables included | AC |
| User guide | Yes |
| AC adapter included | Yes |
| Package type | Box |
| Package width | 91 |
| Package depth | 108 |
| Package height | 85 |
| Package weight | 190 |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE,Federal Communications Commission (FCC),RoHS |
Delivery Options
Economy Delivery (UK)
Business Express
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
