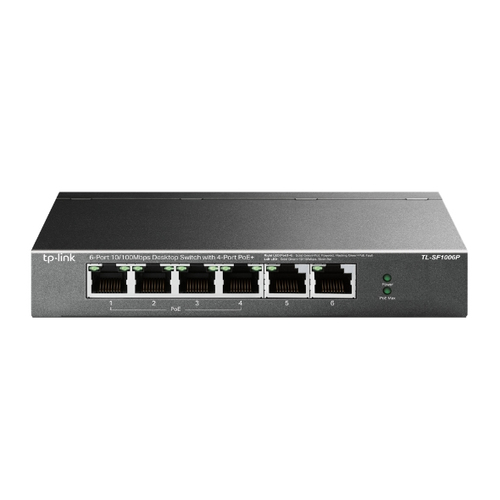

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 1.2 |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power supply included | Yes |
| DC input voltage | 53.5 |
| Input current | 1.31 |
| Power consumption (max) | 74 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 252.34 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 1.2 |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Design | |
| Rack mounting | No |
| Stackable | No |
| Product colour | Black |
| Housing material | Metal |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power supply included | Yes |
| DC input voltage | 53.5 |
| Input current | 1.31 |
| Power consumption (max) | 74 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 252.34 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
