TP-Link TL-SF1008P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Olive
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1Qbb |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 5000 |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Optical fiber | |
| Fiber ethernet cabling technology | 40GBASE-SR4 |
| Data transmission | |
| Switching capacity | 1.6 |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Security | |
| DHCP features | DHCPv6 relay |
| Access Control List (ACL) | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF |
| IPv4 & IPv6 features | IPv6 portal |
| Design | |
| Rack mounting | No |
| Product colour | Olive |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Performance | |
| Expansion module support | Yes |
| Built-in processor | Yes |
| Processor manufacturer | Broadcom |
| Memory type | DRAM |
| Power | |
| DC input voltage | 48 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60.2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 171 |
| Depth | 98 |
| Height | 27 |
| Packaging data | |
| User guide | Yes |
| Package type | Box |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express

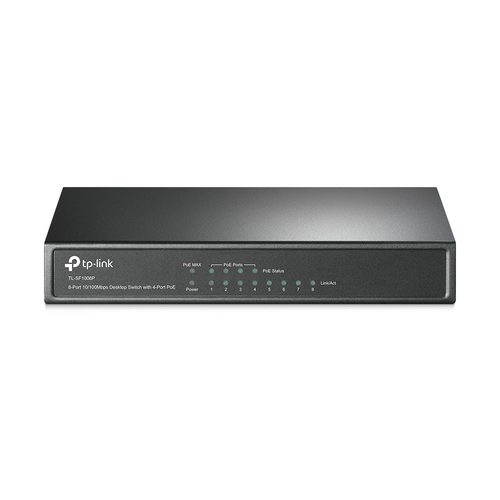

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port.
-Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
