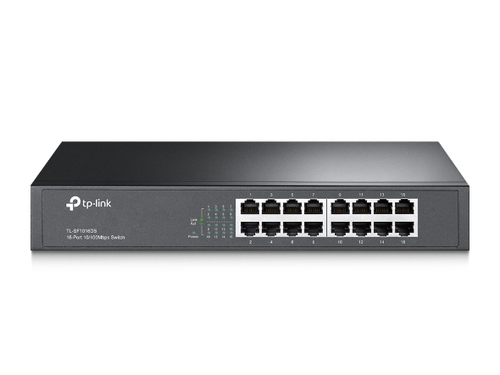

TP-Link TL-SF1016DS network switch Unmanaged Fast Ethernet (10/100) 1U
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Cable types supported | Cat3,Cat4,Cat5 |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 3.2 |
| Throughput | 2.38 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Packet buffer memory | 2 |
| Security | |
| Static port security | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Redundant fans support | Yes |
| Certification | FCC, RoHS |
| Performance | |
| Fanless | No |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 2.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 7.03 |
| Weight & dimensions | |
| Width | 294 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T |
| Cable types supported | Cat3,Cat4,Cat5 |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100 |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 3.2 |
| Throughput | 2.38 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Packet buffer memory | 2 |
| Security | |
| Static port security | Yes |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Redundant fans support | Yes |
| Certification | FCC, RoHS |
| Performance | |
| Fanless | No |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 2.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 7.03 |
| Weight & dimensions | |
| Width | 294 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Rubber feet | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | RoHS |
