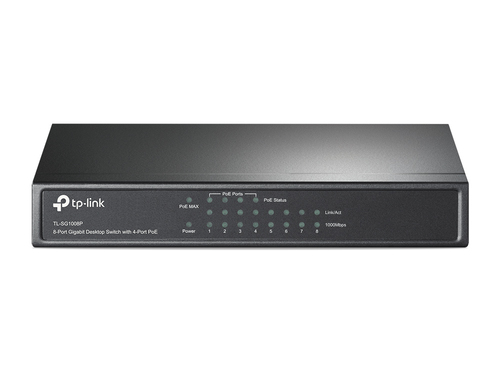

TP-Link TL-SG1008P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Hazelnut
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber optic connector | LuxCis |
| Compatible memory cards | MMC Mobile |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.11j |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T |
| Cable types supported | Cat6a |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 1000 |
| Virtual LAN features | IP subnet–based VLAN |
| VLAN mapping type | 2:2 VLAN Mapping |
| Optical fiber | |
| Fiber ethernet cabling technology | 40GBASE-LR4 |
| Data transmission | |
| Switching capacity | 16 |
| MAC address table | 4800 |
| Store-and-forward | Yes |
| Security | |
| DHCP features | DHCPv6 client |
| Security algorithms | HTTPS |
| Authentication | Auto VLAN |
| Authentication type | HWTACACS |
| Queue scheduling algorithms | SP |
| MAC address entries | Blackhole MAC address entries |
| Protocols | |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv6 Telnet |
| Design | |
| Rack mounting | No |
| Product colour | Hazelnut |
| Housing material | Polymer |
| LED indicators | Error |
| Airflow direction | Back-to-front airflow |
| Certification | CE, FCC, RoHS |
| Power | |
| Power supply included | Yes |
| Number of power supply units | 1 |
| DC input voltage | 48 |
| Input current | 1.25 |
| Power consumption (typical) | 53 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 171 |
| Depth | 98 |
| Height | 27 |
| Packaging data | |
| Cables included | AC |
| User guide | Yes |
| Package type | Box |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.
Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber optic connector | LuxCis |
| Compatible memory cards | MMC Mobile |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.11j |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-T |
| Cable types supported | Cat6a |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 1000 |
| Virtual LAN features | IP subnet–based VLAN |
| VLAN mapping type | 2:2 VLAN Mapping |
| Optical fiber | |
| Fiber ethernet cabling technology | 40GBASE-LR4 |
| Data transmission | |
| Switching capacity | 16 |
| MAC address table | 4800 |
| Store-and-forward | Yes |
| Security | |
| DHCP features | DHCPv6 client |
| Security algorithms | HTTPS |
| Authentication | Auto VLAN |
| Authentication type | HWTACACS |
| Queue scheduling algorithms | SP |
| MAC address entries | Blackhole MAC address entries |
| Protocols | |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv6 Telnet |
| Design | |
| Rack mounting | No |
| Product colour | Hazelnut |
| Housing material | Polymer |
| LED indicators | Error |
| Airflow direction | Back-to-front airflow |
| Certification | CE, FCC, RoHS |
| Power | |
| Power supply included | Yes |
| Number of power supply units | 1 |
| DC input voltage | 48 |
| Input current | 1.25 |
| Power consumption (typical) | 53 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) ports quantity | 4 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 171 |
| Depth | 98 |
| Height | 27 |
| Packaging data | |
| Cables included | AC |
| User guide | Yes |
| Package type | Box |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
