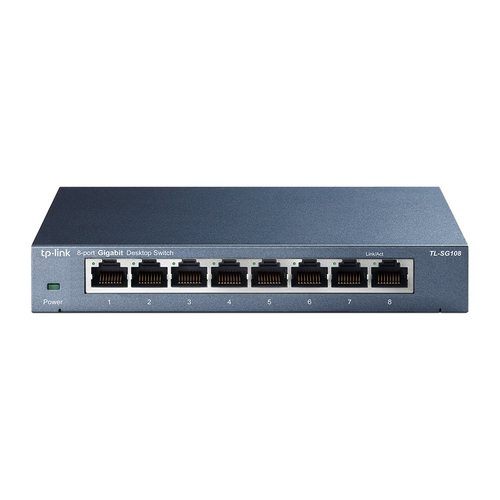

TP-Link TL-SG108 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 8 |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 16 |
| Forwarding rate | 11.9 |
| MAC address table | 4096 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 |
| Security | |
| Access Control List (ACL) IPv6 entries | 11 |
| IGMP snooping | Yes |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Certification | CE, FCC ,RoHS |
| Power | |
| Power supply included | Yes |
| AC input voltage | 220 |
| AC input frequency | 50 |
| Input current | 0.6 |
| Power consumption (max) | 3.3 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 158 |
| Depth | 101 |
| Height | 25 |
| Packaging data | |
| Cables included | AC |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Package type | Box |
Delivery Options
Economy Delivery (UK)
Business Express
- Green Ethernet technology saves the power up to 82%
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS1 and IGMP Snooping function1
- Plug and play, no configuration needed
What This Product Does
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 82% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG108 greatly expands your network capacity, enabling instant large files transferring. So，power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG108 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG108 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 82% reduction in power use.
Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
Traffic Optimization
802.1p and DSCP QoS1 enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping1 optimizes the Multicast data stream.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
