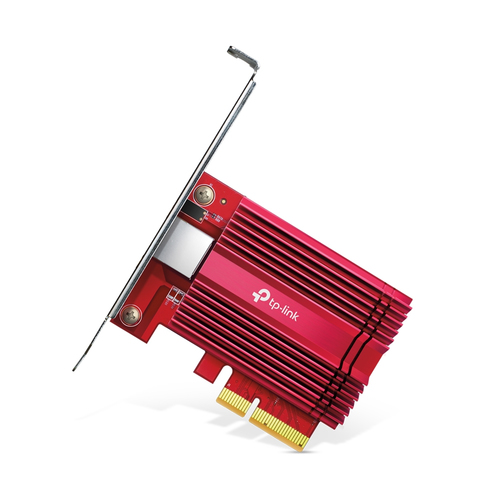

TP-Link TX401 network card Internal Ethernet 10000 Mbit/s
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Maximum data transfer rate | 10000 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500,5000,10000 |
| Design | |
| Component for | PC |
| Product colour | Red |
| Internal | Yes |
| Certification | FCC, CE |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 120.8 |
| Depth | 98.2 |
| Height | 21.5 |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Quick installation guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
PCIe 3.0 Slot to 10 Gigabit Ethernet
Upgrade to 10G Networking
10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.
10 Gbps Internet Access
Make Full Use of Your High-Speed Internet Access
10 Gbps NAS Connection
Lightning-Fast Local Data Transmissions
10 Gbps Host Server Building
High Hardware Configuration for a Powerful Server
Play Never Ends with 10G
With 10 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.
Local Data Transmissions in Seconds
For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.
Versatile, Multi-Speed Compatibility
10GBase-T is backwards compatible with multiple data rates, including 10 Gbps, 5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps Base-T connectivity. The 10G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 10G networking smoothly.
QoS Support
A Bandwidth Buff for Gaming
Quality of Service technology ensures enough bandwidth and avoids network congestion for PC gaming. It delivers prioritized performance for gamers.
Strengthened PCI Express 3.0 ×4
Supports PCI Express Gen3 ×4 for more efficient data transmissions
Easy Setup
Simple software installation with the intuitive Utility on the provided CD
Comprehensive System Support
Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux, and macOS.
