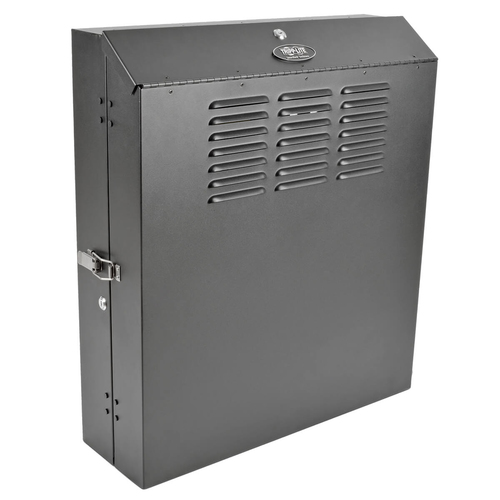

Tripp Lite SRWF6U SmartRack 6U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
Product Technical Specification
| Features | |
| Product colour | Black |
| Maximum weight capacity | 68 |
| Rack capacity | 6U |
| Certification | EIA-310-E |
| Country of origin | China |
| Weight & dimensions | |
| Size (imperial) | 19 |
| Width | 650.2 |
| Depth | 292.1 |
| Height | 731.5 |
| Weight | 29030 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 789.9 |
| Package depth | 430 |
| Package height | 870 |
| Package weight | 31980 |
| Packaging content | |
| Mounting kit | Yes |
| Screws included | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Products per pallet | 1 |
| Master (outer) case width | 789.9 |
| Master (outer) case length | 430 |
| Master (outer) case height | 870 |
| Master (outer) case gross weight | 31980 |
| Products per master (outer) case | 1 |
| Harmonized System (HS) code | 8517.79.0000 |
Delivery Options
Economy Delivery (UK)
Business Express
Because the low-profile cabinet mounts vertically, it extends less than 12 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 6U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF6U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Saves Valuable Workspace
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 6U of space
Low-profile vertical-mount cabinet extends less than 12 inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels
Also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep
Maximum load capacity of 150 lbs (68 kgs)
Keeps Important Equipment Secure
Top panel and reversible front door lock securely to help prevent damage, tampering or theft
Vented cabinet keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
Ships fully assembled for quick installation
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in
Threaded mounting holes support M6 or 12-24 mounting
Rack spaces marked for easy reference
Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
| Features | |
| Product colour | Black |
| Maximum weight capacity | 68 |
| Rack capacity | 6U |
| Certification | EIA-310-E |
| Country of origin | China |
| Weight & dimensions | |
| Size (imperial) | 19 |
| Width | 650.2 |
| Depth | 292.1 |
| Height | 731.5 |
| Weight | 29030 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 789.9 |
| Package depth | 430 |
| Package height | 870 |
| Package weight | 31980 |
| Packaging content | |
| Mounting kit | Yes |
| Screws included | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Products per pallet | 1 |
| Master (outer) case width | 789.9 |
| Master (outer) case length | 430 |
| Master (outer) case height | 870 |
| Master (outer) case gross weight | 31980 |
| Products per master (outer) case | 1 |
| Harmonized System (HS) code | 8517.79.0000 |
