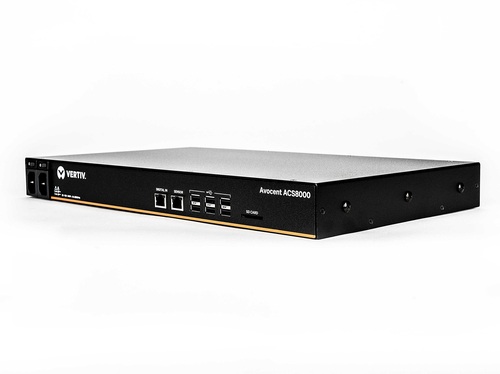

Vertiv Avocent 16-Port ACS8000 Console System with dual AC Power Supply - ACS8016DAC-404

Manufacturer: VERTIV - IT MANAGEMENT SYSTEMS | Model: ACS8016DAC-404 | Product ID: 9610 | Warranty: 2 Years
£3377.93 (inc. VAT)
1 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Technical details
Rack mountingYes
Internal modemNo
Zero Touch Provisioning (ZTP)Yes
Web-based managementYes
Temperature sensorYes
Product colourBlack
Event loggingYes
Management features
Management protocolsCLI, HTTP/ HTTPS, SNMP
Security
Authentication methodLOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)
Security algorithms3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS 140-2,HTTPS,IPSec,SHA-256,SNMP,SNMPv3,SSH,SSH-2
IP address filteringYes
One-time password (OTP)Yes
Ports & interfaces
Console portRJ-45
Serial ports quantity16
USB 2.0 ports quantity8
Ethernet LAN (RJ-45) ports2
SFP module slots quantity2
AC outlet typesC13 coupler
Software
Operating system installedEmbedded Linux
Weight & dimensions
Dimensions (WxDxH)438.2 x 241.3 x 44.5
Weight3400
Power
Power source typeAC
AC input voltage100 - 240
AC input frequency50 - 60
Power consumption (typical)20
Power consumption (max)35
Input current0.1
Number of power supply units2
Operational conditions
Operating temperature (T-T)-10 - 60
Storage temperature (T-T)-20 - 70
Operating relative humidity (H-H)20 - 80
Storage relative humidity (H-H)5 - 95
Certificates
CertificationFCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
Memory
Internal memory1024
Flash memory16000
RAM capacity1024
RAM typeDDR3L
eMMC capacity16
Processor
Processor familyARM Cortex-A9
Processor architectureARM Cortex-A9
Processor cores2
Processor frequency667
Network
Copper ethernet cabling technology10BASE-T,1000BASE-T,1000BASE-TX
Cable types supportedCat4,Cat5,Cat5e,Cat6,Cat6+,Cat6a,Cat6e,Cat7,Fiber
Other features
SafetyUL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6)
