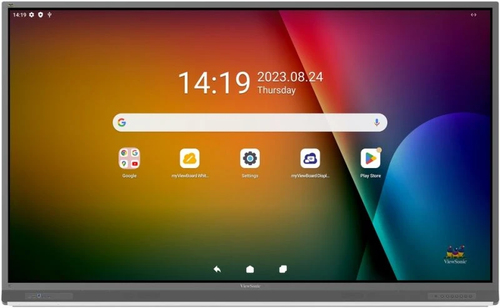

Viewsonic IFP8652-2F interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Black HDMI
Product Technical Specification
| Display | |
| Display diagonal | 86 |
| Display brightness | 350 |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2160 |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| Panel type | LCD |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Response time | 8 |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Infrared |
| Number of simultaneous touchpoints | 40 |
| Touch resolution | 32767 x 32767 |
| Touch system response time | 10 |
| Viewing angle, horizontal | 178 |
| Viewing angle, vertical | 178 |
| Working area | 1209.6 x 680.4 |
| Hardness | 7H |
| Computer system | |
| Operating system installed | Android |
| Operating system version | 11 |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex A73 + ARM Cortex A53 |
| Processor frequency | 1.5 |
| Processor cores | 8 |
| Maximum internal memory | 32 |
| RAM capacity | 3 |
| RAM type | DDR4 |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 24 |
| Built-in subwoofer | Yes |
| Subwoofer RMS power | 16 |
| Projector | |
| Built-in projector | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 |
| Ports & interfaces | |
| Interface | HDMI |
| HDCP | Yes |
| HDCP version | 2.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A,USB Type-B |
| HDMI ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| HDMI version | 2.0 |
| HDMI output ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 |
| Ethernet LAN (RJ-45) ports | 1 |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| Headphone connectivity | 3.5 mm |
| RS-232 ports | 1 |
| Ergonomics | |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 200 |
| Mean time between failures (MTBF) | 30000 |
| Certification | cTUVus, FCC/ICES003, Energy Star 8.0, EMC/CE, CB/LVD, GOST-R/EAC, UkrSEPRO, EPEAT, Mexico NOM , Mexico Energy, UKCA, UK-EEL, BSMI, BIS, LBL( Low Blue Light Certification), Flicker Free, Green BOM, RoHS, ErP-Eco, REACH, SCIP, WEEE, TPCH , Packing waste, CA65, PAIA |
| Power | |
| Power consumption (typical) | 89 |
| Power consumption (off) | 0.5 |
| AC input voltage | 100 - 240 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 1268 |
| Depth | 85 |
| Height | 773 |
| Weight | 26400 |
| Packaging data | |
| Package width | 1428 |
| Package depth | 220 |
| Package height | 878 |
| Package weight | 35500 |
| Quantity per pack | 1 |
| Packaging content | |
| USB cable length | 3 |
| Cables included | AC,HDMI,USB |
| Remote control included | Yes |
| Mounting kit | Yes |
| Batteries included | Yes |
| Mounting brackets included | Yes |
| Quick start guide | Yes |
| Stylus included | Yes |
| Other features | |
| Country of origin | China |
Delivery Options
Economy Delivery (UK)
Business Express
Tap Into Limitless Learning
Special Features
Empower with a wealth of productivity apps all tailored to elevate learning experiences
Google Play Store Expands Teaching Horizons
Integrated access to the Google Play Store and Workspace suite simplifies collaboration. With the Android™ 13 launcher, you can put widgets, educational tools, and essential apps like Chrome, YouTube, and Google Search, within instant reach with a simple drag-and-drop onto your home screen.
Streamlined Protection, Effortless Updates
With the Android EDLA-certified IFP52-2F, educators and students can confidently use technology in a protected environment, thanks to automatic Android security and application updates. This also eases the workload of IT staff, who no longer need to worry about update maintenance.
Enhance Learning Experiences with Advanced Multitasking
Make lessons and activities dynamic with split-screen multitasking. Whether whiteboarding in one window while a video streams in another or brainstorming answers alongside test questions, Picture-by-Picture mode displays two windows simultaneously for seamless productivity.
Designed for Teachers
Integrating user-centric design with digital tools for seamless lessons
Ignite Learning with myViewBoard Whiteboard
Engage, excite, and inspire with the cross-compatible integrated myViewBoard Whiteboard. Whether teaching in-person or online, enjoy streamlined lesson planning and interactive classes with tailor-made whiteboarding tools, like pop quizzes, an infinite canvas, and timers.
Ergonomic Design for Fluid Lesson Delivery
The control bar’s sleek design positions angled input buttons and I/O ports front and center. This ensures effortless access to essential controls while streamlining connectivity for a smooth and uninterrupted lesson flow.
One-cable Solution Simplifies Setup
Designed for ease of use, the comprehensive connectivity setup is complete with three conveniently located USB-C ports. This one-cable solution streamlines your workspace, delivering swift multimedia playback, smooth data transfer, and efficient device charging.
Seamless Sharing via Web-browser Screen Casting
Effortlessly share your device screen to the ViewBoard with myViewBoard Display. This built-in casting service enables instant sharing from compatible web browsers, eliminating the need for additional cables or app installations.
Collaborate with Simultaneous Multidevice Screen Casting
Enjoy expanded casting possibilities with the pre-installed vCast, allowing four-device simultaneous casting to the ViewBoard from desktop and mobile devices. Take advantage of split, extended, and grouped screen functionalities, or effortlessly cast lesson content to connected devices for efficient collaboration.
Fast Wireless Connectivity for Dynamic Classrooms
Upgrade the ViewBoard IFP52-2F Series with an optional Wi-Fi module for seamless internet access. Enjoy online videos or research resources within a clutter-free environment. Additionally, the device can double as a hotspot to ensure a stable, wireless internet connection for the classroom.
Enrich Teaching with Versatile Accessories
The ViewBoard IFP52-2F Series comes complete with a full line-up of compatible accessories. Customize your device with a web camera, slot-in PC, a motorized trolley cart, and a document camera, alongside many more add-ons for all teaching needs and scenarios.
Built for Students
Providing eye care and interactivity for the classroom
8-Microphone Array for Seamless Hybrid Learning
The ViewBoard IFP52-2F Series integrates an 8-microphone array with advanced noise detection and cancellation technology, empowering accessible learning experiences with clear audio for hybrid, remote, and pre-recorded lessons.
Captivate with the Immersive Integrated Speakers
Front and center-positioned speakers, this setup offers an immersive audio experience. The enhanced sound effects and a captivating atmosphere for movies, games, and multimedia content.
Pen-on-Paper Writing Enabled by Ultra Fine Touch Technology
Enjoy a pen-on-paper writing experience as you note take, annotate, and sketch ideas with the dual pen. Enhanced with Ultra Fine Touch Technology and 40-point touch capability, the ViewBoard IFP52-2F Series empowers collaboration and lesson interactivity for new ways of learning.
Prioritize Eye Care with Flicker-Free Technology
Integrating flicker-free technology, a blue light filter, and an anti-glare coating directly into the display, the ViewBoard IFP52-2F Series provides a superior viewing experience that is both gentle on the eyes and energy-efficient.
Tailored for Schools
Robust security and centralized, seamless device management
Optimize Remote Communication and Device Management
Broadcast, and manage multiple displays simultaneously from any location via the secure, user-friendly myViewBoard Manager. This centralized device management system not only enhances campus communication with multimedia and emergency broadcasting, but also empowers energy conservation through convenient remote on/off and ECO mode controls. Disclaimer: *Multimedia broadcasts and task scheduling are available with the optional Advanced license.
Grow Green Together with Energy-Efficient Design
The ViewBoard IFP52-2F Series holds the prestigious EPEAT Silver certification, recognizing its adherence to rigorous energy consumption, supply chain carbon emissions, and end-of-life management standards. For schools dedicated to a sustainable future, it presents an energy-efficient and cost-effective solution that aligns with sustainability goals.
