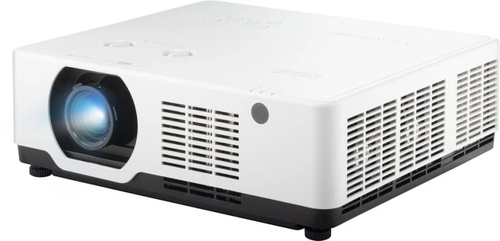

Viewsonic LSC601WU data projector Standard throw projector 6000 ANSI lumens 3LCD WUXGA (1920x1200) White
Product Technical Specification
| Projector | |
| Supported aspect ratios | 16:10,16:9 |
| Screen size compatibility | 30 - 300 |
| Projection distance | 0.7 - 11.37 |
| Projector brightness | 6000 |
| Projection technology | 3LCD |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 3000000:1 |
| Native aspect ratio | 16:10 |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -30 - 30 |
| Keystone correction, vertical | -30 - 30 |
| Horizontal synchronization (min) | 15 |
| Horizontal synchronization (max) | 100 |
| Vertical synchronization (max) | 0.085 |
| Light source | |
| Light source type | Lamp |
| Service life of light source | 20000 |
| Service life of light source (economic mode) | 30000 |
| Lens system | |
| Focal length range | 15.3 - 24.6 |
| Aperture range (F-F) | 1.58 - 2.02 |
| Zoom capability | Yes |
| Throw ratio | 1.08 - 1.76 |
| Offset | 5 |
| Video | |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |
| Ports & interfaces | |
| USB 2.0 Type-B ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| HDMI ports quantity | 2 |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Noise level (economic mode) | 25 |
| Noise level | 35 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 |
| Number of built-in speakers | 1 |
| Design | |
| Market positioning | Education |
| Product type | Standard throw projector |
| Product colour | White |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 330 |
| Power consumption (standby) | 0.5 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Weight & dimensions | |
| Width | 405 |
| Depth | 358 |
| Height | 137 |
| Weight | 7900 |
| Package width | 510 |
| Package depth | 498 |
| Package height | 260 |
| Package weight | 10930 |
| Packaging content | |
| Remote control included | Yes |
| Manual | Yes |
Delivery Options
Economy Delivery (UK)
Business Express
Bright Images for Large Venues
Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces
Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.
Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.
Adaptable to Any Environment
Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.
2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.
Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
