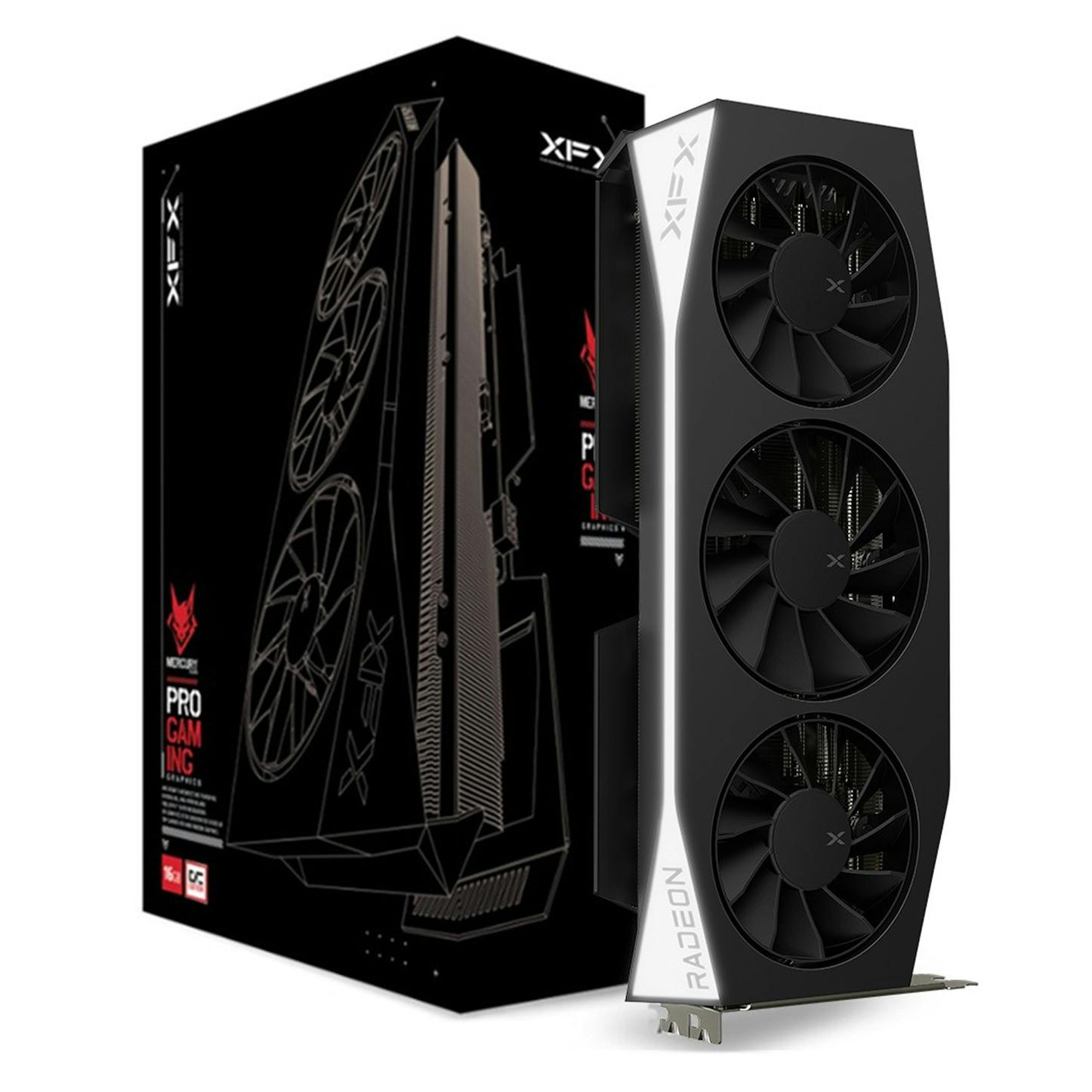

XFX Mercury 9060 XT Gaming OC Triple Fan 16GB GDDR6 PCI-Express Graphics Card
Product Technical Specification
| Colour | |
| Primary Colour | Black |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Dimensions | |
| Length / Depth | 320 mm |
| Width | 127 mm |
| Height | 53 mm |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 1900 MHz |
| Max. GPU Clock (Boost) | 3320 MHz |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (2x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9060 XT 16GB |
| Graphics Chip | Navi 44 |
| Manufacturing Process | 4 nm |
| Shader Units | 2048 |
| Raytracing Cores / Ray Acceleratorss | 32 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 32 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 320 |
| GPU Effective Memory Clock (MHz) | 2518 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Manufacturer | |
|---|---|
| Manufacturer | XFX |
| Model Number | RX-96TMERCB9 |
| Product Name | AMD Radeon™ RX 9060 XT |
| Product Description | XFX Mercury AMD Radeon RX 9060 XT OC Gaming Edition with 16GB GDDR6 HDMI 2xDP, AMD RDNA™ 4 |
| Short Description | XFX Mercury AMD Radeon RX 9060 XT OC Gaming Edition 16GB |
| Launch Date | June, 2025 |
| UPC Number | 840191503436 |
| Specifications | |
| Bus Type | PCI-E 5.0 |
| Base Clock Up To | 1900 MHz |
| Game Clock Up To | 2780 MHz |
| Boost Clock Up To | 3320 MHz |
| Stream Processors | 2048 |
| Compute Units | 32 |
| Memory Bus | 128 bit |
| Memory Clock | 20 Gbps |
| Memory Size | 16 GB |
| Memory Bandwidth | Up to 340 GB/s |
| Memory Type | GDDR6 |
| Card Profile | Dual Slot |
| Thermal Solution | 3 Fan |
| Outputs | |
| DisplayPort 2.1 | 2x |
| HDMI™ 2.1 | 1x |
| Requirements | |
| External Power | 1x PCI-E 8 pin connections |
| Minimum Power Supply Requirement | 450 watt |
| Certifications | |
| Certifications | RoHS |
| Package Contents | |
| Quick Installation Guide | 1 |
| Estimated Dimensions & Weights | |
| Card Dimension (cm) | 32 x 12.7 x 5.3 |
| Card Dimension (inch) | 12.6 x 5 x 2.09 |
| Master Carton Dimensions (cm) | 46 x 39.5 x 47.5 |
| Master Carton Dimensions (inch) | 18.11 x 15.55 x 18.7 |
| Master Carton Weight (Kg) | 14.97 est |
| Master Carton Weight (lb) | 33 est |
| Package Dimensions (cm) | 44.5 x 23.5 x 12.5 |
| Package Dimensions (inch) | 17.51 x 9.25 x 4.92 |
| Package Weight (Kg) | 2.3 est |
| Package Weight (lb) | 5.07 est |
| Units/Carton | 6 |
| Technologies | |
|
32 AMD RDNA™ 4 Compute Units (with RT+AI Accelerators) AMD Infinity Cache™ technology DisplayPort™ 2.1 AMD Radiance Display™ Engine AMD Radeon™ Boost technology* AMD Radeon™ Anti-Lag* technology* 16GB GDDR6 on 128-Bit Memory Bus PCI® Express 5.0 ready AMD FidelityFX™ technologies* AMD FidelityFX™ Super Resolution technology* Microsoft® DirectX® 12 Ultimate Microsoft® DirectStorage Vulkan® Optimized AMD smart technologies* AMD Software: Adrenalin Edition™ application AMD Noise Suppression* AMD Privacy View* AMD Radeon™ Super Resolution technology* AMD Link* AMD Freesync™ technology* | |
| Key Features | |
| HDMI™ 4K Support | Yes |
| 4K H264 Decode | Yes |
| 4K H264 Encode | Yes |
| H265/HEVC Decode | Yes |
| H265/HEVC Encode | Yes |
| AV1 Decode | Yes |
| AV1 Encode | Yes |
| Colour | |
| Primary Colour | Black |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Dimensions | |
| Length / Depth | 320 mm |
| Width | 127 mm |
| Height | 53 mm |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 1900 MHz |
| Max. GPU Clock (Boost) | 3320 MHz |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (2x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9060 XT 16GB |
| Graphics Chip | Navi 44 |
| Manufacturing Process | 4 nm |
| Shader Units | 2048 |
| Raytracing Cores / Ray Acceleratorss | 32 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 32 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 320 |
| GPU Effective Memory Clock (MHz) | 2518 |
