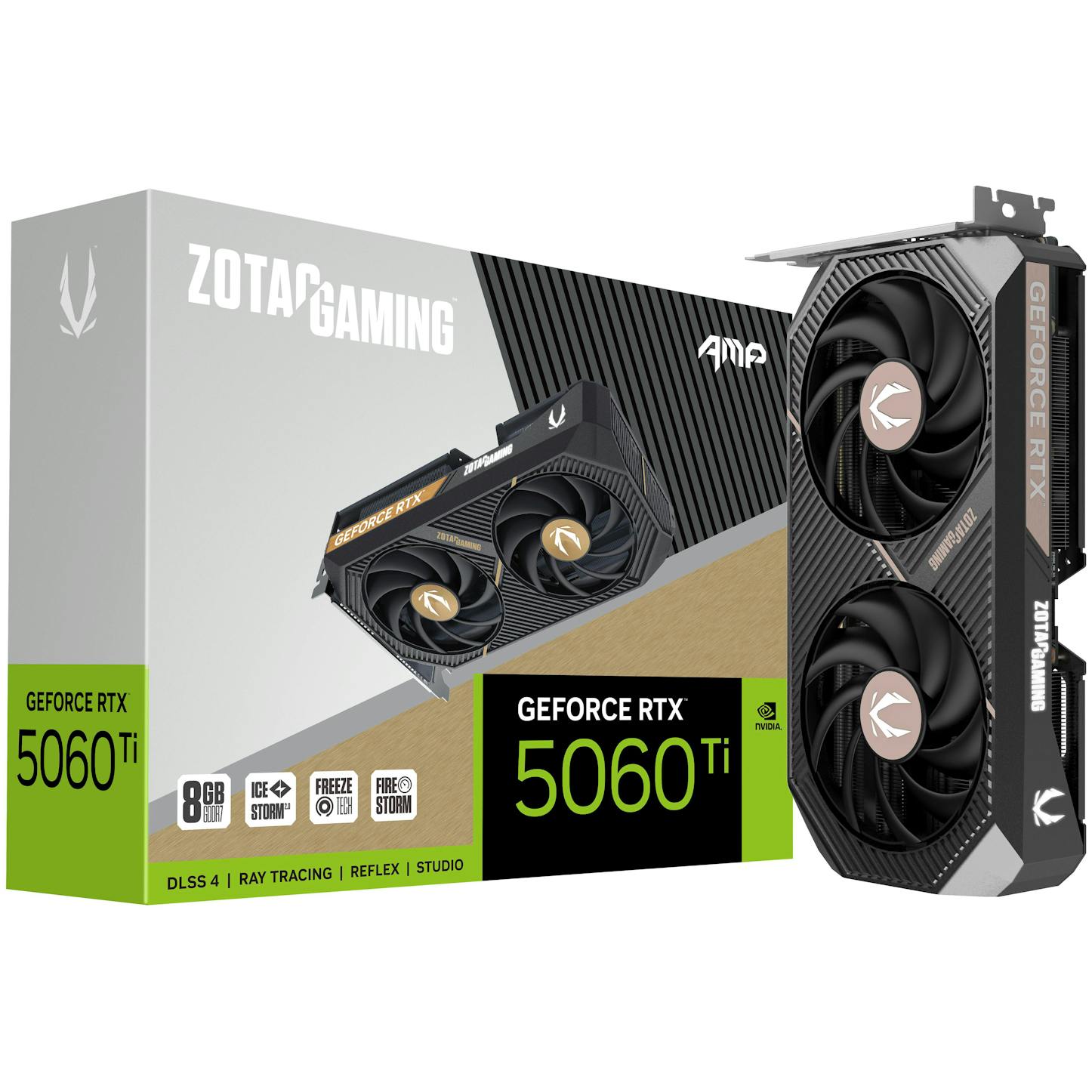

Zotac GeForce RTX 5060 Ti AMP 8GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Dimensions | |
| Length / Depth | 220.5 mm |
| Width | 120.25 mm |
| Height | 41.6 mm |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Colour | |
| Primary Colour | Black |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | Yes |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 2 |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2407 MHz |
| Max. GPU Clock (Boost) | 2632 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5060 Ti 8GB |
| Graphics Chip | GB206-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 4608 |
| Tensor Cores | 144 |
| Raytracing Cores / Ray Acceleratorss | 36 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 8 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 448 |
| GPU Effective Memory Clock (MHz) | 1750 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The Zotac GeForce RTX 5060 Ti AMP 8GB GDDR7 Graphics Card comes equipped with everything you need to take your gaming performance to new heights. Harnessing cutting-edge NVIDIA Blackwell architecture, this GPU is armed with 4608 CUDA cores to render your favourite gaming worlds in glorious detail. Take advantage of support for ray tracing and DLSS 4.0 with multi-frame generation to unlock stunning true-to-life visuals and buttery smooth frame rates. Both of which are sure to prove advantageous in the heat of battle. The onboard thermal solution featuring IceStorm 2.0 cooling and BladeLink fans keeps the Zotac RTX 5060 Ti performing at optimum temperatures. Plus, as an SFF-Ready GPU, this graphics card sports a sleek, compact form factor, designed to fit within a huge range of PC cases.
Zotac GeForce RTX 5060 Ti AMP 8GB GDDR7 Graphics Card at a Glance:
- Blackwell RTX architecture
- 4608 CUDA cores – fourth-gen RT and fifth-gen Tensor cores
- 2632MHz boost clock speed
- 8GB GDDR7 VRAM
- 128-bit interface
- PCIe 5.0 connectivity
Built for Gamers
Harnessing NVIDIA Blackwell architecture, the Zotac GeForce RTX 5060 Ti AMP 8GB GDDR7 Graphics Card delivers exceptional gaming performance in all your favourite casual, mid-tier, and even AAA titles. Equipped with 4608 CUDA cores, paired with fourth-gen RT and fifth-gen Tensor cores, this GPU renders your games in incredible detail. This is sure to provide you with that much-needed competitive edge. Onboard support for ray tracing and DLSS 4.0 with multi-frame generation delivers true-to-life graphics and silky-smooth frame rates with near-zero screen tearing or ghosting. All of which is sure to immerse you further, enabling you to enjoy an optimised gaming experience every time.
In addition to this, the 8GB of GDDR7 VRAM delivers seamless multitasking while ensuring the rest of your workloads remain efficient, ensuring minimal interruptions as you work or play. Plus, PCIe 5.0 connectivity ensures blazing fast speeds with no unwanted lag or latency slowing you down.
Compatibility with Zotac FireStorm Utility grants you unparalleled control at your fingertips. Configure the Zotac RTX 5060 Ti to perfectly suit your gaming demands with options to adjust voltages, clock speeds, memory frequencies, and so much more.
Powerful IceStorm 2.0 Cooling
Keeping the Zotac GeForce RTX 5060 Ti AMP 8GB GDDR7 Graphics Card performing at optimum temperatures is the onboard IceStorm 2.0 thermal solution. Featuring a combination of powerful BladeLink Fans, excess heat is evenly distributed across the whole GPU surface, facilitating quicker heat dissipation. As a result, the Zotac RTX 5060 Ti can easily maintain peak performance and optimum temperatures, even when experiencing heavy loads.
Onboard support for FREEZE Fan Stop means the three fans dynamically adjust depending on your workloads. Straight out of the box, the fans are configured to stop spinning when the Zotac RTX 5060 Ti is idle and ramp up again when temperatures increase, striking the perfect balance between acoustics and thermal performance.
SFF-Ready
A part of NVIDIA’s line-up of SFF-Ready enthusiast GPUs, the Zotac GeForce RTX 5060 Ti AMP 8GB GDDR7 Graphics Card still packs a punch while sporting a sleek, compact form factor. This GPU has been designed to fit in a wide range of PC cases, including space-saving Micro-ATX and jaw-dropping full towers.
What’s more, integrated RGB lighting means the Zotac RTX 5060 Ti will make a stylish addition to the interior of your PC case. You can easily customise both the colour and lighting effects in Zotac FireStorm Utility, ensuring this GPU perfectly suits your desired aesthetic for a unified display.
GeForce RTX 50 Series - Game Changer!
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
RTX AI PCs
NVIDIA Powers the World’s AI. And Yours._x000D_ Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
| Dimensions | |
| Length / Depth | 220.5 mm |
| Width | 120.25 mm |
| Height | 41.6 mm |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Colour | |
| Primary Colour | Black |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | Yes |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 2 |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2407 MHz |
| Max. GPU Clock (Boost) | 2632 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5060 Ti 8GB |
| Graphics Chip | GB206-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 4608 |
| Tensor Cores | 144 |
| Raytracing Cores / Ray Acceleratorss | 36 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 8 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 448 |
| GPU Effective Memory Clock (MHz) | 1750 |
