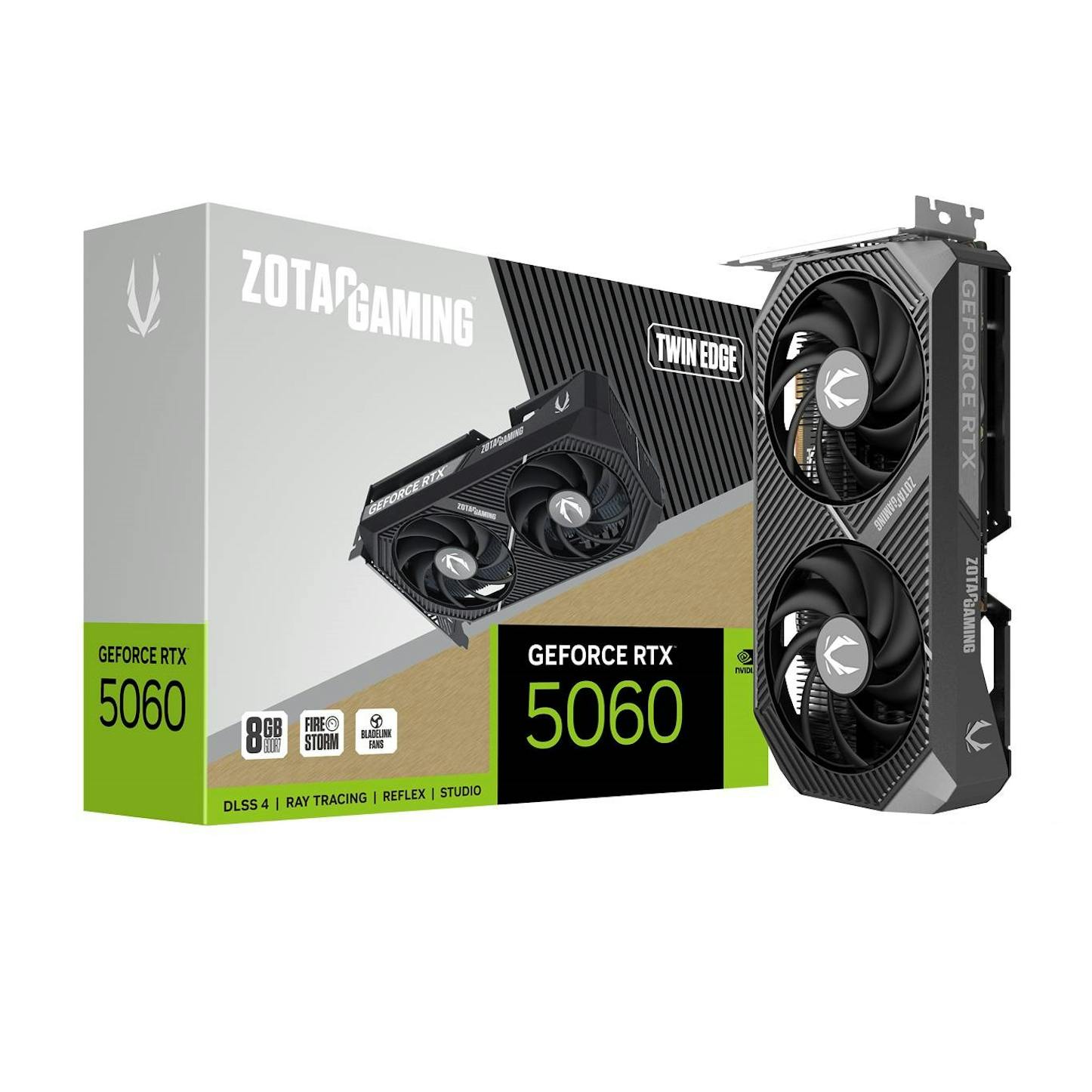

Zotac GeForce RTX 5060 Twin Edge 8GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Dimensions | |
| Length / Depth | 120.5 mm |
| Width | 220.5 mm |
| Height | 41.6 mm |
| AI | |
| AI Acceleration | Yes |
| AI Accelerator | Tensor Cores |
| Colour | |
| Primary Colour | Black |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 2 |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2280 MHz |
| Max. GPU Clock (Boost) | 2497 MHz |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5060 |
| Graphics Chip | GB206-250 |
| Manufacturing Process | 5 nm |
| Shader Units | 3840 |
| Tensor Cores | 120 |
| Raytracing Cores / Ray Acceleratorss | 30 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 8 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 448 |
| GPU Effective Memory Clock (MHz) | 1750 |
Delivery Options
Economy Delivery (UK)
Business Express
The Zotac GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card comes equipped with everything you need to enjoy maximum gaming performance at 1080p and 1440p resolutions. Powered by NVIDIA RTX Blackwell architecture, this GPU expertly renders your gaming worlds in stunning high definition. Onboard support for ray tracing and DLSS 4.0 with multi-frame generation facilitate true-to-life, immersive visuals along with buttery-smooth frame rates. All of which are sure to prove advantageous on the battlefield. The 8GB of GDDR7 VRAM keeps your workloads running efficiently, enabling you to simultaneously game and chat to friends with ease. No more input lag or latency slowing you down! Additionally, as an SFF-Ready Enthusiast GPU, the Zotac RTX 5060 can be installed in a wide range of PC cases, including compact, space-saving Micro-ATX and full-towers.
Zotac GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card at a Glance:
- Blackwell RTX architecture
- 3840 CUDA cores
- 2497MHz boost clock speed
- 8GB GDDR7 VRAM
- 128-bit interface
- PCIe 5.0 connectivity
Built for Gamers
Built upon NVIDIA RTX Blackwell architecture, the Zotac GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card features everything you need to take your gaming to new heights. Take advantage of the 3840 CUDA cores, paired with fourth-gen RT and fifth-gen Tensor cores, to unlock incredible detail and true-to-life visuals. Powerful ray tracing and DLSS 4.0 with multi-frame generation work in tandem to deliver buttery-smooth frame rates that are sure to immerse you in all your favourite gameplay.
What’s more, the 8GB of GDDR7 VRAM keeps operations efficient and multitasking seamless, ensuring your gameplay remains uninterrupted every time.
IceStorm 2.0 Cooling
To ensure the Zotac GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card performs at optimum temperatures, this GPU harnesses powerful IceStorm 2.0 Cooling. Dual BladeLink fans help to expel unwanted heat away from the graphics card, maintaining peak performance, even under heavy loads.
These fans are compatible with FREEZE Fan Stop, meaning they dynamically adjust to your workloads. They’ll stop spinning when the Zotac RTX 5060 is idle and ramp up again when temperatures increase, ensuring you don’t need to compromise on acoustics or thermal performance.
SFF-Ready
As part of NVIDIA’s SFF-Ready line-up, the Zotac GeForce RTX 5060 Twin Edge 8GB GDDR7 Graphics Card is compatible with a wide range of PC cases, including space-saving Micro-ATX form factors.
