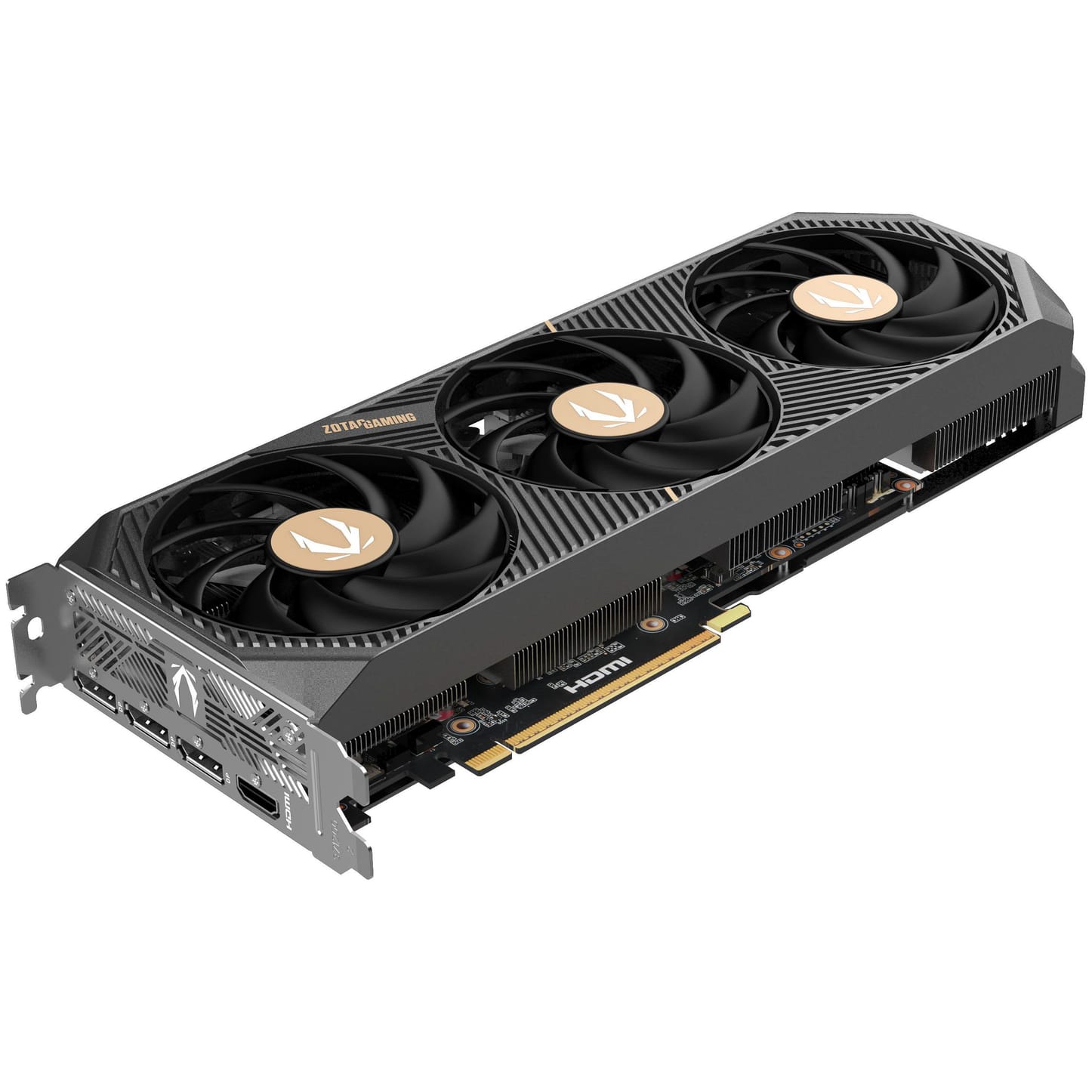

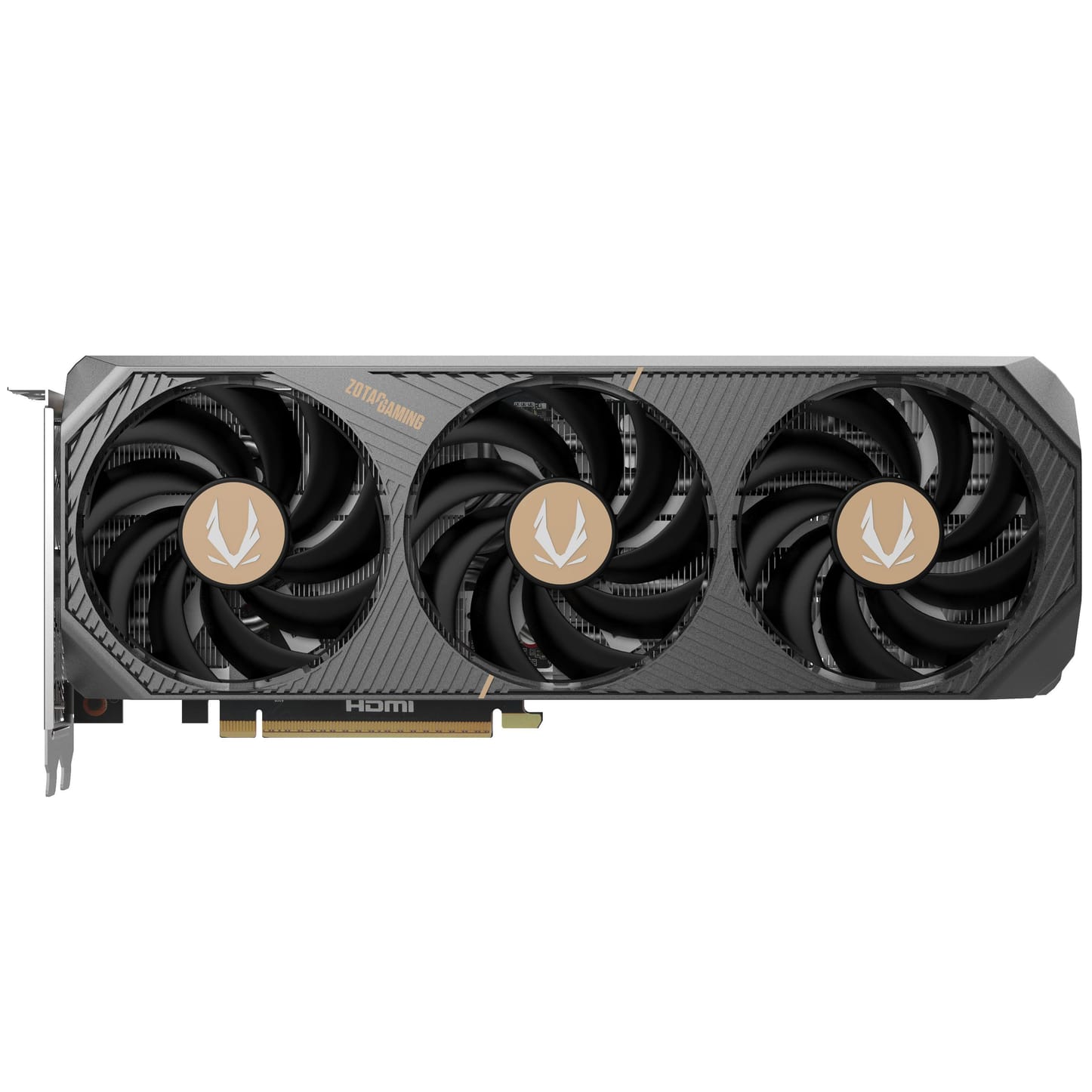

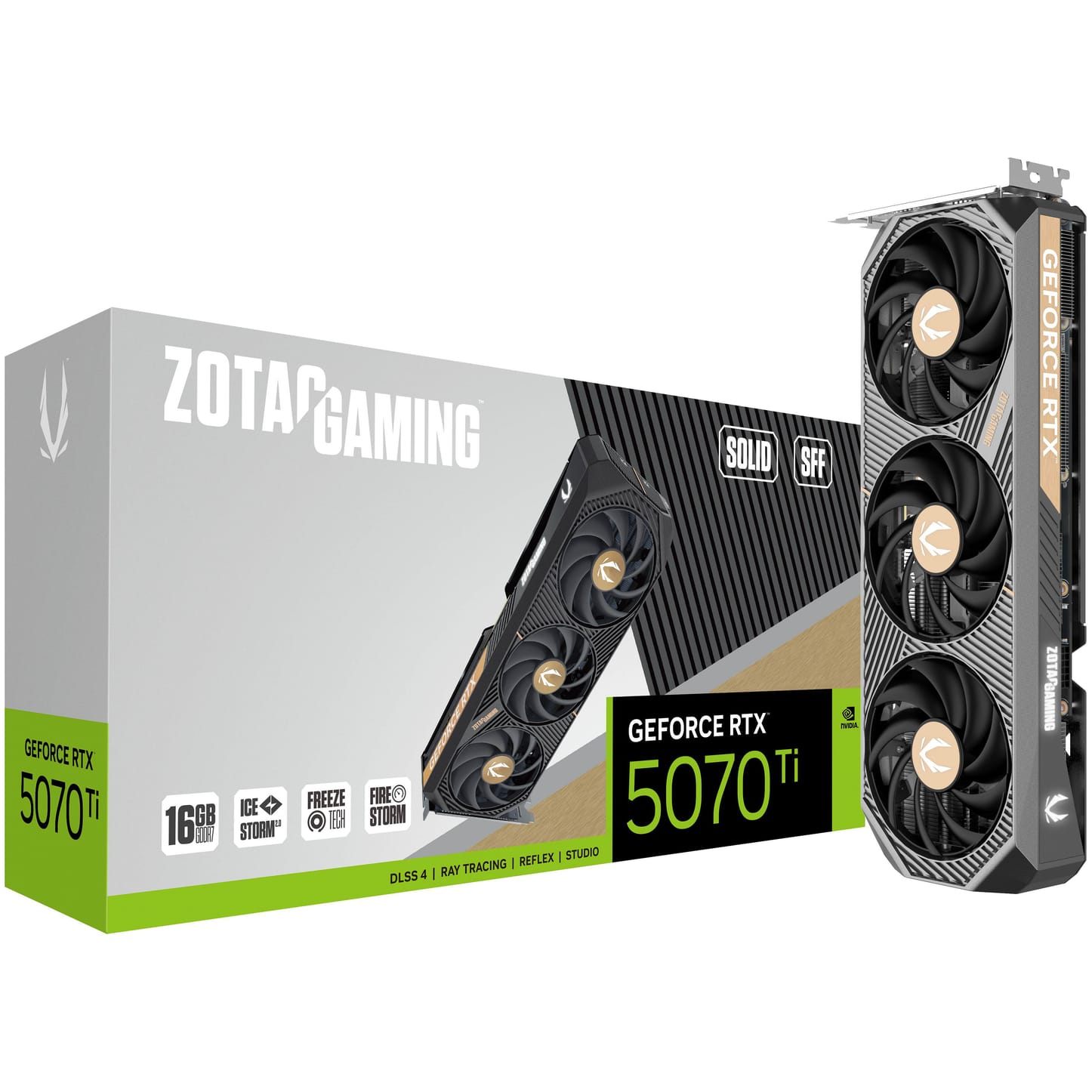

Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card
Product Technical Specification
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| AI | |
| AI Acceleration | Yes |
| AI Accelerator | Tensor Cores |
| Dimensions | |
| Length / Depth | 304.4 mm |
| Width | 115.8 mm |
| Height | 41.6 mm |
| Water Cooling | |
| Watercooling | No |
| Back Connect | |
| Back Connect | No |
| Colour | |
| Primary Colour | Grey |
| Lighting | |
| Lighting / RGB | No |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Expansion Slots | |
| Expansion Slots Required | 2 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2295 MHz |
| Max. GPU Clock (Boost) | 2452 MHz |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5070 Ti |
| Graphics Chip | GB203-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 8960 |
| Tensor Cores | 280 |
| Raytracing Cores / Ray Acceleratorss | 70 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 896 |
| GPU Memory Clock (MHz) | 1750 |
| GPU Memory Clock Effective (Gbps) | 28 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Take advantage of the Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card to achieve unparalleled performance in all your favourite casual, mid-tier, and AAA titles. Harnessing NVIDIA Blackwell architecture and 8960 CUDA cores, this graphics card renders your games in glorious detail, ensuring you see every second of the gameplay as and when it happens around you. Onboard support for ray tracing and DLSS 4.0 with multi-frame generation facilitates stunning immersive visuals, which is sure to provide you with that much-needed competitive edge. What’s more, 16GB of GDDR7 VRAM operates on a 256-bit interface, to keep your workloads efficient, enabling you to game, stream, or create with ease. As part of NVIDIA’s line-up of SFF-Ready GPUs, the Zotac RTX 5070 Ti can be installed in a wide range of PC cases, including space-saving Micro-ATX form factors.
Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card at a Glance:
- Blackwell RTX architecture
- 8960 CUDA cores – fourth-gen RT and fifth-gen Tensor cores
- 2452MHz boost clock speed
- 16GB GDDR7 VRAM
- 256-bit interface
- PCIe 5.0 connectivity
NVIDIA Blackwell Architecture
Powered by NVIDIA RTX Blackwell architecture, the Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card comes equipped with everything you need to enhance your gaming performance. Take advantage of 8960 CUDA cores, featuring onboard support for ray tracing and DLSS 4.0 with multi-frame generation, to unlock cinematic visuals and buttery-smooth frame rates in all your favourite gaming worlds. All of which you can enjoy with near-zero screen tearing or ghosting, which is sure to prove advantageous in the heat of battle.
The 16GB of powerful GDDR7 VRAM operates on a 256-bit interface, ensuring there’s no lag or latency slowing you down. This keeps your workloads incredibly efficient and multitasking seamless.
IceStorm 2.0 Advanced Cooling
Keeping the Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card cool is the onboard IceStorm 2.0 Advanced Cooling solution. The three BladeLink fans ensure there is always a steady supply of air flowing throughout this GPU, helping to rapidly dissipate unwanted heat.
What’s more, compatibility with FREEZE Fan Stop and Active Fan Control means these fans operate on a fan curve, dynamically adjusting to your workload. When the Zotac RTX 5070 Ti is idle, the fans stop spinning, allowing you to enjoy whisper-quiet operation. However, when the gaming ramps up and temperatures increase, they’ll automatically start spinning again. This ensures the Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card performs at optimum temperatures, even under heavy loads.
SFF-Ready
As part of NVIDIA’s range of SFF-Ready Enthusiast GPUs, the Zotac GeForce RTX 5070 Ti Solid SFF 16GB GDDR7 Graphics Card boasts a compact form factor without sacrificing performance. As a result, you can instal this graphics card in a wide range of PC cases, including Micro-ATX and full towers.
GeForce RTX 50 Series - Game Changer!
Powered by NVIDIA Blackwell, GeForce RTX™ 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.
RTX AI PCs
NVIDIA Powers the World’s AI. And Yours.
Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC.
