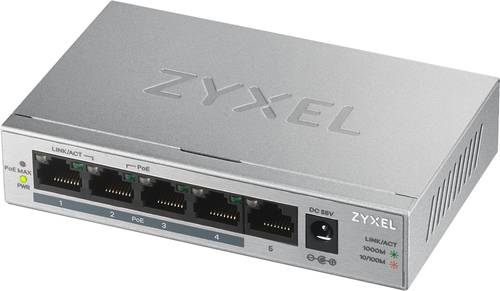

Zyxel GS1005HP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 10 |
| MAC address table | 2048 |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Design | |
| Rack mounting | No |
| Product colour | Silver |
| LED indicators | Activity,Link,PoE,Power |
| Certification | CE, FCC, BSMI, EAC |
| Power | |
| AC input voltage | 100 - 240 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 60 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 171 |
| Depth | 75 |
| Height | 26 |
| Weight | 235 |
| Packaging data | |
| Quick start guide | Yes |
| Package type | Box |
| Package width | 210 |
| Package depth | 132 |
| Package height | 78 |
| Package weight | 834 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
The Zyxel GS1005HP is equipped with 5 gigabit Ethernet ports, 4 of which are PoE ports that can deliver up to 60W of total PoE budget. The GS1005HP can easily connect with PoE ready devices to your network with plug-and-play design while providing power-saving benefits without compromising performance. The GS1005HP fills a long-standing hole in the market for unmanaged PoE switches that feature the 802.3at standard, has a high power budget and are affordable for SOHOs and small businesses.
Smart PoE+ 802.3af/802.3at support
The GS1005HP supports the IEEE 802.3at standard, providing a maximum of 30 watts per port (with a max total power budget of 60 watts) to supply power to PoE network devices such as wireless APs, IP cameras, and VoIP phones.
Easy PoE Budget Management
The GS1005HP boasts a total power budget of 60W and features a handy LED indicator that shows orange when the 50W threshold is reached. If power usage exceeds the budget, the last device will automatically be dropped with no impact on the other devices that are powered through the switch.
Gigabit data transmission and smart features
Featuring Gigabit performance, it provides 10 times faster than Fast Ethernet. Delivers up to 2,000 Mbps of dedicated bandwidth per port. Get more advanced features like Jumbo Frame, flow control, and auto-negotiation. It’s a great choice for SMBs who want to enjoy high-speed business network applications!
Fanless design
Extend your network without disrupting your quiet business environment. This switch features a fanless design that ensures noiseless operation and greater reliability over time with no moving parts that may fail.
Advanced Energy-Savings at Work
The GS1005HP's built-in IEEE 802.3az Energy Efficient Ethernet (EEE) function automatically detects network traffic and adjusts power consumption dynamically to reduce power usage during low link utilization periods.
