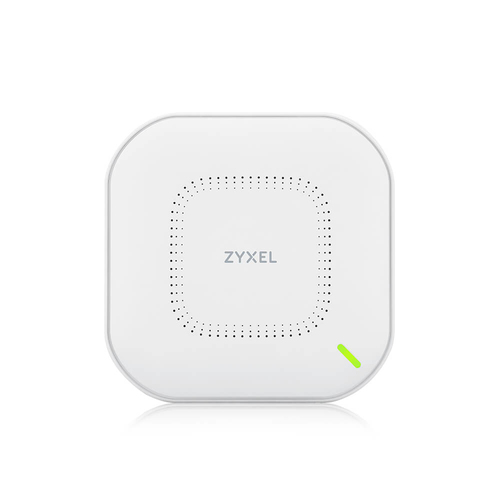

Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
Product Technical Specification
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 |
| Maximum data transfer rate (2.4 GHz) | 575 |
| Maximum data transfer rate (5 GHz) | 1200 |
| Ethernet LAN data rates | 10,100,1000 |
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 |
| Bandwidth | 0.08 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Virtual LAN features | SSID-based VLAN assignment |
| Band steering | Yes |
| Transmitting power | 22 |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Security | |
| Security algorithms | WPA,WPA-PSK,WPA2,WPA2-Enterprise,WPA3 |
| Protocols | |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Management features | |
| Web-based management | Yes |
| Command-line interface (CLI) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 5 - 12 |
| Input current | 1.5 |
| Power consumption (typical) | 17 |
| Design | |
| Placement | Ceiling,Table,Wall |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| LED indicators | Yes |
| Certification | FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
| Antenna | |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 |
| Polarization | Dual polarization |
| Weight & dimensions | |
| Width | 180 |
| Depth | 180 |
| Height | 39 |
| Weight | 453 |
| Packaging data | |
| Package width | 229 |
| Package depth | 216 |
| Package height | 64 |
| Package weight | 770 |
| Packaging content | |
| Number of products included | 1 |
| AC adapter included | Yes |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95 |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -30 - 70 |
| Storage relative humidity (H-H) | 10 - 90 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
