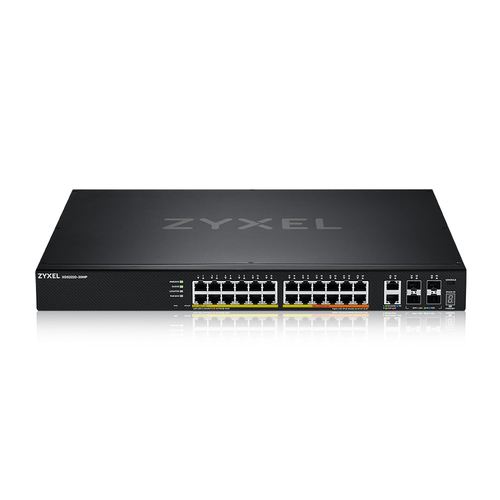

Zyxel XGS2220-30HP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G Ethernet (copper) ports quantity | 2 |
| Installed SFP+ modules quantity | 4 |
| Network | |
| Networking standards | IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3an,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bt,IEEE 802.3x,IEEE 802.3z |
| 10G support | Yes |
| Routing entries | 64 |
| Data transmission | |
| Switching capacity | 168 |
| Forwarding rate | 125 |
| MAC address table | 32000 |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 |
| Security | |
| DHCP features | DHCP relay,DHCP server |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Security algorithms | SNMP,SNMPv2,SNMPv3 |
| BPDU filtering/protection | Yes |
| Authentication type | IEEE 802.1x,RADIUS,TACACS+ |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/v2 |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Performance | |
| Internal memory | 1024 |
| Flash memory | 64 |
| Mean time between failures (MTBF) | 268.305 |
| Technical details | |
| Compliance certificates | RoHS,Federal Communications Commission (FCC),Low Voltage Directive (LVD),CE |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| Power consumption (max) | 477 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 26 |
| Total Power over Ethernet (PoE) budget | 400 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 95 |
| Storage relative humidity (H-H) | 10 - 90 |
| Heat dissipation | 1626.57 |
| Weight & dimensions | |
| Width | 441 |
| Depth | 330 |
| Height | 44 |
| Weight | 4350 |
| Packaging data | |
| Package width | 580 |
| Package depth | 503 |
| Package height | 95 |
| Package weight | 5770 |
Delivery Options
Economy Delivery (UK)
Business Express
The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement.
Flexible 10G For Converged Networking Applications
On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure.
Multiple Power Budget options
PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points.
Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio.
Nebula, Manage It Your Way!
The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.
Dedicated Networked AV Mode
The XGS2220 series includes a tailor-made networked AV mode when used in standalone mode. You can switch interfaces to simplify the installation of AVoIP with an intuitive wizard that prompts high level requirements for this type of network infrastructure; leveraging from AI intelligence, the switch is then able to remove the complexity by applying all the necessary details to set up a professional AVoIP deployment in minutes.
When deployed in Networked AV mode the switch gives you a dedicated dashboard allowing quick access to the key AV network elements such as IGMP and IP information as well as fast access to configuration functions often associated with AVoIP deployments.
